Festo
537273

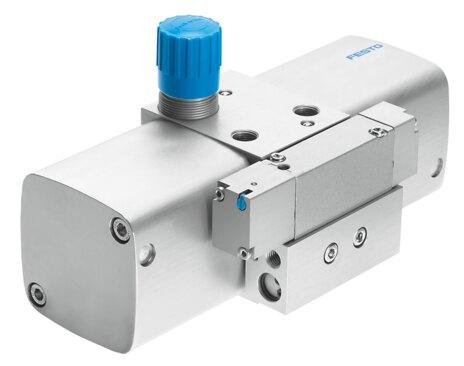

Pressure booster DPA-40-10
The Festo 537273 is a double-piston pressure booster featuring a 40 mm piston diameter and a structural design that permits any mounting position. It operates with an inlet pressure 1 ranging from 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar, or 36.25 psi to 116 psi) and delivers an output pressure 2 ranging from 0.45 MPa to 1 MPa (4.5 bar to 10 bar, or 65.25 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:3:4]. This component includes a G1/8 pressure gauge setup, a moderate corrosion resistance class (CRC 2) rating, and operates within ambient and storage temperatures of 5 °C to 60 °C without oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537273
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537273.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 40 mm
- Mounting position
- Any
- Structural design
- Double-piston pressure booster
- Pressure gauge
- Set up for G1/8
- Output pressure 2
- 0.45 MPa...1 MPa | 65.25 psi...145 psi
- Outlet pressure 2
- 4.5 bar...10 bar
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Pressure regulation range MPa
- 0.45 MPa...1 MPa
- Pressure regulation range
- 4.5 bar...10 bar
- Pressure regulation range psi
- 65.25 psi...145 psi
- Inlet pressure 1
- 2.5 bar...8 bar
- Inlet pressure 1 MPa
- 0.25 MPa...0.8 MPa
- Inlet pressure 1 psi
- 36.25 psi...116 psi
- Information on pressure regulation range
- If the controller spring is tensioned to the maximum, the maximum | output pressure may be exceeded by 40%.
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 1500 g
- Type of mounting
- With internal thread
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- M7
- Note on materials
- RoHS compliant
