Name: Festo 537274 Pressure booster DPA-40-10
Brand: Festo

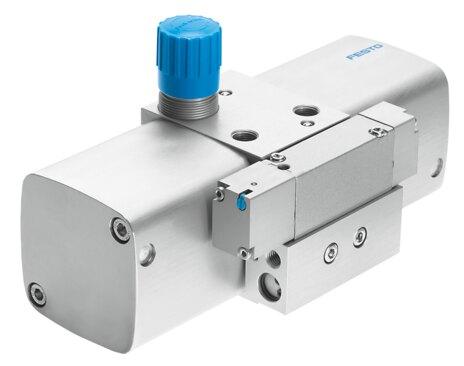

Pressure booster DPA-40-10

This Festo 537274 double-piston pressure booster features a 40 mm piston diameter and operates in any mounting position with compressed air conforming to ISO 8573-1:2010 [7:3:4] without oil lubrication. It accepts an inlet pressure of 0.25 MPa to 1 MPa (2.5 bar to 10 bar / 36.25 psi to 145 psi) and regulates output pressure from 0.45 MPa to 1.6 MPa (4.5 bar to 16 bar / 65.25 psi to 232 psi), featuring a G1/8 connection set up for a pressure gauge while maintaining a CRC rating of 2 and an ambient and storage temperature range of 5 °C to 60 °C. Please submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 537274
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 537274.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Piston diameter: 40 mm
Mounting position: Any
Structural design: Double-piston pressure booster
Pressure gauge: Set up for G1/8
Output pressure 2: 0.45 MPa...1.6 MPa | 65.25 psi...232 psi
Outlet pressure 2: 4.5 bar...16 bar
Operating pressure: 0.25 MPa...1 MPa | 2.5 bar...10 bar | 36.25 psi...145 psi
Pressure regulation range MPa: 0.45 MPa...1.6 MPa
Pressure regulation range: 4.5 bar...16 bar
Pressure regulation range psi: 65.25 psi...232 psi
Inlet pressure 1: 2.5 bar...10 bar
Inlet pressure 1 MPa: 0.25 MPa...1 MPa
Inlet pressure 1 psi: 36.25 psi...145 psi
Information on pressure regulation range: If the controller spring is tensioned to the maximum, the maximum | output pressure may be exceeded by 40%.
Operating medium: Compressed air as per ISO 8573-1:2010 [7:3:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: 5 °C...60 °C
Ambient temperature: 5 °C...60 °C
Product weight: 1500 g
Type of mounting: With internal thread
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/4
Pneumatic connection 3: M7
Note on materials: RoHS compliant
