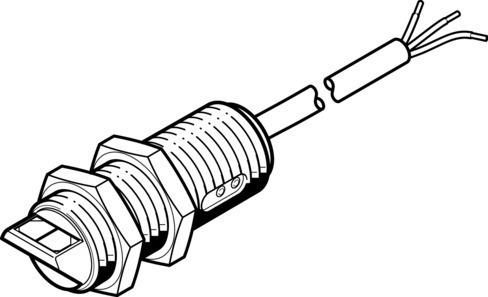

Reference imageConfirm configuration by manufacturer part number.
Festo
537688
Diffuse scan SOEG-RTH-M18W-PS-K-2L
The Festo 537688 is a round optoelectronic industrial component utilizing a diffuse sensor with background suppression and red light to measure position within a working range of 10 mm to 120 mm. This EN 60947-5-2 compliant device features a PNP bright-switching output, a 500 Hz maximum switching frequency, 200 mA maximum output current, and operates on a 10 V to 36 V DC range across an ambient temperature of -25 °C to 55 °C. It includes pulsed short-circuit protection, reverse polarity protection for all electrical connections, and carries c UL us - Listed (OL) and RCM compliance marks alongside CE marking per the EU EMC directive. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537688
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537688.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Measured variable
- Position
- Measuring principle
- Optoelectronic
- Method of measurement
- Diffuse sensor with background suppression
- Type of light
- Red
- Working range
- 10 mm...120 mm
- Ambient temperature
- -25 °C...55 °C
- Switching output
- PNP
- Switching element function
- Bright-switching
- Max. switching frequency
- 500 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...36 V
- Residual ripple
- 20 %
- Idle current
- 25 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-wire | Cable
- Cable length
- 2.5 m
- Material of cable sheath
- TPE-U(PUR)
- Size
- M18x1
- Type of mounting
- With lock nut
- Tightening torque
- 20 Nm
- Product weight
- 124 g
- Housing material
- Brass | Chrome-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537688. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
