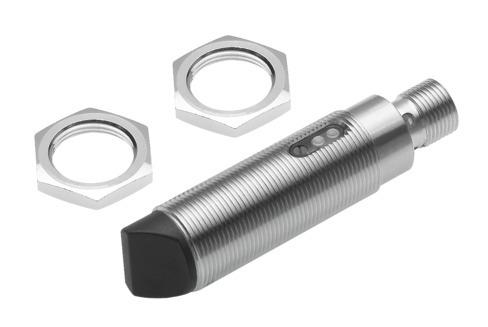

Reference imageConfirm configuration by manufacturer part number.
Festo
537696
Receiver SOEG-E-M18W-PA-S-2L
The Festo 537696 is an optoelectronic round through-beam sensor receiver designed to measure position over a working range of 20000 mm in ambient temperatures from -25 °C to 55 °C. Conforming to EN 60947-5-2 with RCM and c UL us - Listed certifications and CE marking as per the EU EMC directive, this component features a 4-pin M12x1 electrical plug connection, PNP switching output with an antivalent switching element function, and a 10 V to 36 V DC operating voltage range. It delivers a maximum switching frequency of 1000 Hz, a maximum output current of 200 mA, pulsed short-circuit protection, and reverse polarity protection for all electrical connections. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537696
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537696.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Measured variable
- Position
- Measuring principle
- Optoelectronic
- Method of measurement
- Through-beam sensor | Receiver
- Working range
- 20000 mm
- Ambient temperature
- -25 °C...55 °C
- Switching output
- PNP
- Switching element function
- Antivalent
- Max. switching frequency
- 1000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...36 V
- Residual ripple
- 20 %
- Idle current
- 10 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 4-pin | M12x1 | Plug
- Size
- M18x1
- Type of mounting
- With lock nut
- Tightening torque
- 20 Nm
- Product weight
- 57 g
- Housing material
- Brass | Chrome-plated
- Material of union nut
- Brass | Chrome-plated
- Switching status indication
- LED yellow
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537696. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
