Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

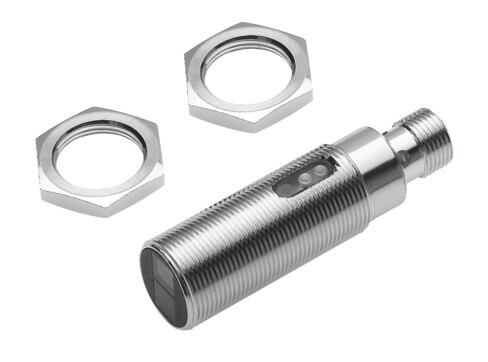

Reference imageConfirm configuration by manufacturer part number.
Festo
537699
Retro-reflective sensor SOEG-RSP-M18-PS-S-2L
The Festo 537699 is a round industrial component utilizing an optoelectronic reflection light barrier measurement principle with red polarized light to sense position across a 2000 mm working range. This PNP switching output device operates on a 10 V to 36 V DC voltage range with dark switching, a maximum switching frequency of 1000 Hz, 200 mA max output current, and pulsed short-circuit protection, while conforming to EN 60947-5-2 with RCM, c UL us, CE, and UKCA compliance within an ambient temperature range of -25 °C to 55 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537699
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537699.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Measured variable
- Position
- Measuring principle
- Optoelectronic
- Method of measurement
- Reection light barrier
- Type of light
- Red polarized
- Working range
- 2000 mm
- Ambient temperature
- -25 °C...55 °C
- Switching output
- PNP
- Switching element function
- Dark switching
- Max. switching frequency
- 1000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...36 V
- Residual ripple
- 20%
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | M12x1 | Plug
- Size
- M18x1
- Type of mounting
- With locknut
- Tightening torque
- 20 Nm
- Product weight
- 53 g
- Housing material
- Brass | Chrome-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537699. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
