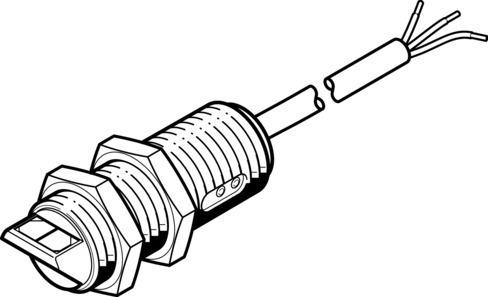

Reference imageConfirm configuration by manufacturer part number.
Festo
537706
Diffuse scan SOEG-RTH-M18W-NS-K-2L
The Festo 537706 is a round optoelectronic diffuse sensor with background suppression that conforms to EN 60947-5-2 standards and utilizes a red light source for position measurement across a working range of 10 mm to 120 mm. Operating on a DC voltage range of 10 V to 36 V with a 200 mA max output current, this unit features an NPN bright-switching output, a 500 Hz max switching frequency, and pulsed short-circuit protection for all electrical connections within an ambient temperature range of -25 °C to 55 °C. Certifications include the RCM compliance mark, c UL us - Listed (OL), and CE marking as per the EU EMC directive. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537706
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537706.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Measured variable
- Position
- Measuring principle
- Optoelectronic
- Method of measurement
- Diffuse sensor with background suppression
- Type of light
- Red
- Working range
- 10 mm...120 mm
- Ambient temperature
- -25 °C...55 °C
- Switching output
- NPN
- Switching element function
- Bright-switching
- Max. switching frequency
- 500 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...36 V
- Residual ripple
- 20 %
- Idle current
- 25 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-wire | Cable
- Cable length
- 2.5 m
- Material of cable sheath
- TPE-U(PUR)
- Size
- M18x1
- Type of mounting
- With lock nut
- Tightening torque
- 20 Nm
- Product weight
- 124 g
- Housing material
- Brass | Chrome-plated
