Festo
537715

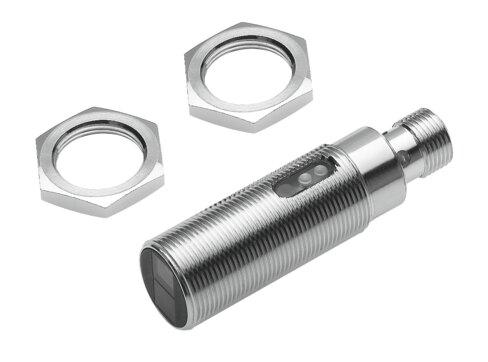

Retro-reflective sensor SOEG-RSP-M18-NS-S-2L
The Festo part number 537715 is a round industrial component utilizing a reflection light barrier optoelectronic measuring principle with red polarized light for position sensing across a 2000 mm working range. It conforms to EN 60947-5-2 and features an NPN dark-switching output with a maximum switching frequency of 1000 Hz, 200 mA max output current, and a 10 V to 36 V DC operating voltage range. Rated for an ambient temperature range of -25 °C to 55 °C, this unit includes pulsed short-circuit protection and carries RCM, c UL us, CE, and UKCA compliance markings. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537715
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537715.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Measured variable
- Position
- Measuring principle
- Optoelectronic
- Method of measurement
- Reection light barrier
- Type of light
- Red polarized
- Working range
- 2000 mm
- Ambient temperature
- -25 °C...55 °C
- Switching output
- NPN
- Switching element function
- Dark switching
- Max. switching frequency
- 1000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...36 V
- Residual ripple
- 20%
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | M12x1 | Plug
- Size
- M18x1
- Type of mounting
- With locknut
- Tightening torque
- 20 Nm
- Product weight
- 53 g
- Housing material
- Brass | Chrome-plated
