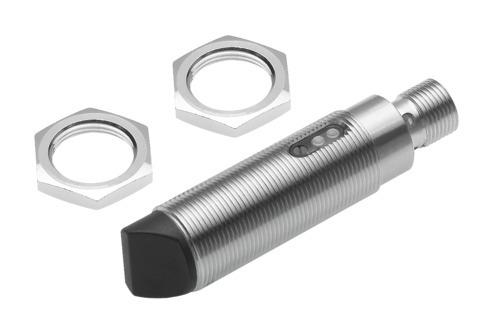

Reference imageConfirm configuration by manufacturer part number.
Festo
537716
Retro-reflective sensor SOEG-RSP-M18W-NS-S-2L
The Festo 537716 is a round optoelectronic industrial component utilizing a reflection light barrier measurement method with red polarized light and a 2000 mm working range. This NPN dark-switching sensor operates on a 10 V to 36 V DC range, delivers a max switching frequency of 1000 Hz, and features pulsed short-circuit protection and reverse polarity protection for all electrical connections. It conforms to EN 60947-5-2 with RCM compliance, c UL us listing, and CE marking per the EU EMC directive, functioning within an ambient temperature range of -25 °C to 55 °C. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537716
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537716.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Measured variable
- Position
- Measuring principle
- Optoelectronic
- Method of measurement
- Reection light barrier
- Type of light
- Red polarized
- Working range
- 2000 mm
- Ambient temperature
- -25 °C...55 °C
- Switching output
- NPN
- Switching element function
- Dark-switching
- Max. switching frequency
- 1000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...36 V
- Residual ripple
- 20 %
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | M12x1 | Plug
- Size
- M18x1
- Type of mounting
- With lock nut
- Tightening torque
- 20 Nm
- Product weight
- 56 g
- Housing material
- Brass | Chrome-plated
- Material of union nut
- Brass | Chrome-plated
- Switching status indication
- LED yellow
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537716. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
