Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
537794

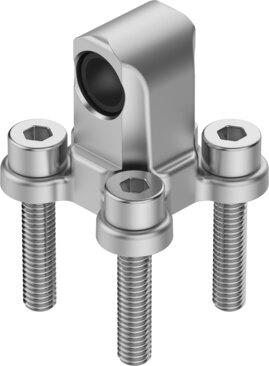

Clevis flange SNCL-12-R3
The Festo part number 537794 is an industrial component featuring a size 12 configuration built on the ISO 21287 norm. This variant includes high corrosion protection with a corrosion resistance class of CRC 3, VDMA24364-B2-L LABS conformity, RoHS compliant materials, and an operating ambient temperature range of -40 °C to 90 °C at a product weight of 20 g. Constructed with a wrought aluminum alloy mounting material with a protective coating, a polymer bearing, and high-alloy stainless steel screws, this unit integrates specific material properties for defined environmental conditions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537794
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537794.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Based on norm
- ISO 21287
- Variants
- High corrosion protection
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...90 °C
- Product weight
- 20 g
- Note on materials
- RoHS compliant
- Mounting material
- Wrought aluminum alloy | With protective coating
- Material of bearing
- Polymer
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537794. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
