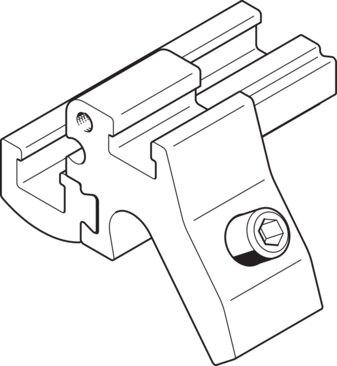

Reference imageConfirm configuration by manufacturer part number.
Festo
537808
Mounting SMBZ-8-125/320
The Festo part number 537808 is an industrial component designed for tie rods with a size of 8, featuring a clamped mounting type and any mounting position. Constructed with an anodized wrought aluminum alloy housing and high-alloy stainless steel screws, this RoHS-compliant unit weighs 14 g, operates within an ambient temperature range of -40 °C to 120 °C at a 0.5 Nm tightening torque, and provides VDMA24364-B2-L LABS conformity with a CRC rating of 2 for moderate corrosion stress on piston diameters from Ø125 to Ø320. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537808
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537808.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8
- Design
- For tie rods
- Mounting position
- Any
- for piston Ø
- Ø125 - Ø320
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...120 °C
- Tightening torque
- 0.5 Nm
- Product weight
- 14 g
- Type of mounting
- Clamped
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy, anodized
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537808. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
