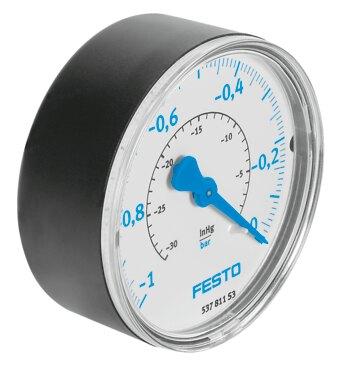

Reference imageConfirm configuration by manufacturer part number.
Festo
537811
Vacuum gauge VAM-63-V1/0-R1/4-EN
Festo Vacuum gauge VAM-63-V1/0-R1/4-EN, part number 537811, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 537811
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537811.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Pressure gauge nominal size
- 63
- Connection position
- Centered on rear side
- Based on norm
- DIN EN 837-1
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Structural design
- Bourdon tube pressure gauge
- Display range
- -1 bar...0 bar | -30 inHg...0 inHg
- Scale
- Double scale | bar (außen) | inch hg (internal) / psi (internal)
- Operating pressure
- -1 bar...0 bar
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Continuous load factor
- 0.75
- Intermittent load factor
- 0.66
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 83 g
- Measurement accuracy class
- 2.5
- Type of mounting
- Front panel mounting
- Pneumatic connection
- R1/4
- Material of screwed plug
- Brass
