Festo
537814

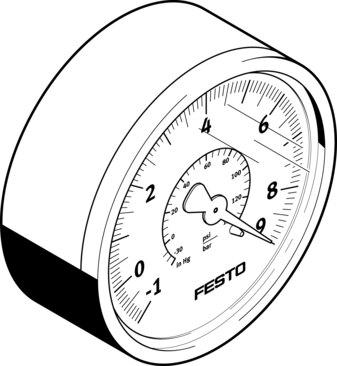

Vacuum gauge VAM-63-V1/9-R1/4-EN
The Festo 537814 is a Bourdon tube pressure gauge with a nominal size of 63 and a centered rear connection position based on the DIN EN 837-1 norm. Featuring a double scale display range of -1 bar to 9 bar, 0 psi to 130 psi, and -30 inHg to 0 inHg, this component operates with compressed air as per ISO 8573-1:2010 [7:4:4] and includes ATEX certification for Zones 1, 2, 21, and 22. The unit weighs 83 g, provides a measurement accuracy class of 2.5, and functions within a medium temperature of -20 °C to 60 °C and an ambient temperature of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537814
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537814.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pressure gauge nominal size
- 63
- Connection position
- Centered on rear side
- Based on norm
- DIN EN 837-1
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Structural design
- Bourdon tube pressure gauge
- Display range
- -1 bar...9 bar | 0 psi...130 psi | -30 inHg...0 inHg
- Scale
- Double scale | bar (außen) | inch hg (internal) / psi (internal)
- Operating pressure
- -1 bar...9 bar
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Continuous load factor
- 0.75
- Intermittent load factor
- 0.66
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 83 g
- Measurement accuracy class
- 2.5
- Type of mounting
- Screw-in
- Pneumatic connection
- R1/4
