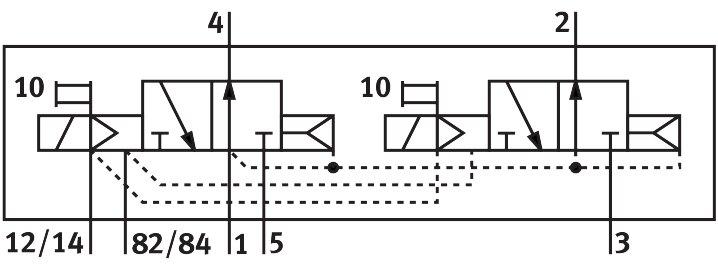

Reference imageConfirm configuration by manufacturer part number.
Festo
537958
Air solenoid valve VMPA2-M1H-N-PI
The Festo 537958 is a 20 mm electrical industrial component featuring a 2x3/2 open monostable piston gate valve design with a soft sealing principle and positive overlap lap. Operating on 24V DC with a normal nominal flow rate of 550 l/min to 600 l/min and an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), this piloted unit includes a pneumatic spring reset, signal status display, and both detenting and non-detenting manual override capabilities in any mounting position. It achieves an IP65 degree of protection according to IEC 60529 and carries c UL us - recognized (OL) certification, with non-reversible flow direction and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) lacking vacuum suitability. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537958
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537958.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 20 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min...600 l/min
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Note on standard nominal ow rate
- MPA-L: 600 l/min | MPA-S: 550 l/min
- Standard nominal ow rate with QS-8
- 550 l/min
- Standard nominal ow rate with QS-10
- 600 l/min
- Switching time off
- 28 ms
- On switching time
- 8 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 900 µs
- Permissible voltage uctuations
- +/- 25%
