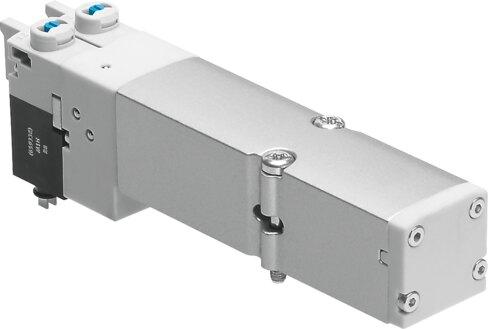

Reference imageConfirm configuration by manufacturer part number.
Festo
537960
Air solenoid valve VMPA2-M1H-D-PI
The Festo part number 537960 is an electrical 2x2/2 closed, monostable industrial component featuring a 20 mm valve size, a piston gate valve structural design, and a soft sealing principle. It delivers a normal nominal flow rate ranging from 650 l/min to 840 l/min at an operating pressure of 0.3 MPa to 1 MPa (3 bar to 10 bar) utilizing a pneumatic spring reset method, piloted control, and a positive overlap lap. Certified as c UL us - recognized (OL) with an IP65 degree of protection per IEC 60529, this unit includes a signal status display, detenting and non-detenting manual override, and operates on 24V DC with a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537960
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537960.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x2/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 20 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 650 l/min...840 l/min
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Note on standard nominal ow rate
- MPA-L: 840 l/min | MPA-S: 650 l/min
- Standard nominal ow rate with QS-8
- 650 l/min
- Standard nominal ow rate with QS-10
- 840 l/min
- Switching time off
- 25 ms
- On switching time
- 7 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 900 µs
- Permissible voltage uctuations
- +/- 25%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537960. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
