Festo
537981

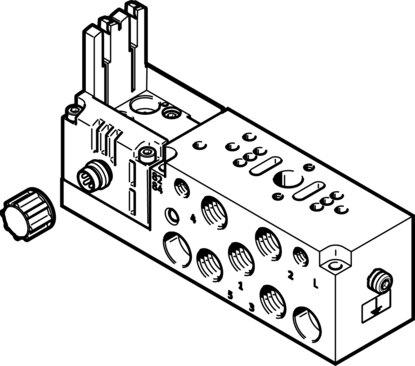

Sub-base VMPA2-IC-AP-1
The Festo part number 537981 is an industrial component featuring an M8 plug electrical connection, sub-base mounting via through-hole, and four G1/8 pneumatic connections designated as pneumatic connection 1, 2, 3, and 4. This unit operates within a pressure and pilot pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) across an ambient temperature range of -5 °C to 50 °C, while carrying a product weight of 233 g, dimensions of 30.5 mm width by 107.3 mm length with a 21 mm width dimension, CRC corrosion resistance class 0, and VDMA24364-B1/B2-L LABS conformity. Regulatory compliance includes c UL us recognition, KC-EMV characterization, CE and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537981
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537981.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 30.5 mm
- Length
- 107.3 mm
- Width dimension
- 21 mm
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 233 g
- Electrical connection
- M8 | Plug
- Sub-base mounting type
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/8
- Pneumatic connection 4
- G1/8
- Pneumatic connection 5
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537981. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
