537983

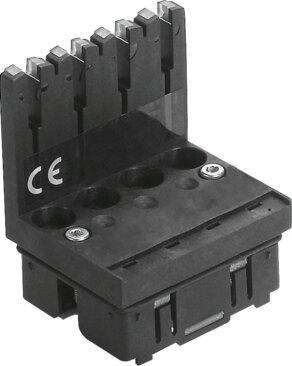

Name: Festo 537983 Electronics module VMPA2-FB-EMS-4
Brand: Festo

Electronics module VMPA2-FB-EMS-4

The Festo part number 537983 is an industrial component featuring diagnostics for undervoltage of pneumatic valves, supporting a maximum of two valve positions and up to four solenoid coils. This lightweight 20 g device is constructed from POM housing material with a RoHS compliant note on materials, exhibiting a corrosion resistance class of CRC 1 and VDMA24364-B1/B2-L LABS conformity. It operates with an intrinsic current consumption of 3 mA at load voltage and 8 mA at operating voltage, alongside a nominal pick-up current of 99 mA per solenoid coil up to 24 ms and a reduced current of 18 mA thereafter. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 537983
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 537983.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Diagnostics: Undervoltage of pneumatic valves
Max. no. of valve positions: 2
Max. no. of solenoid coils: 4
Intrinsic current consumption at load voltage: 3 mA
Intrinsic current consumption at operating voltage: 8 mA
Nominal pick-up current per solenoid coil: 99 mA up to 24 ms
Nominal current with current reduction: 18 mA after 24 ms
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 20 g
Housing material: POM
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 537983. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
