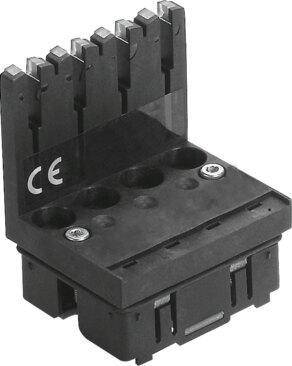

Name: Festo 537984 Electronics module VMPA2-FB-EMG-4
Brand: Festo

Electronics module VMPA2-FB-EMG-4

The Festo part number 537984 is an industrial component featuring diagnostics for undervoltage of pneumatic valves, supporting a maximum of two valve positions and up to four solenoid coils. Constructed with a POM housing that complies with RoHS standards and achieves a corrosion resistance class of CRC 1, this 20 g device exhibits an intrinsic current consumption of 8 mA at operating voltage and 23 mA at load voltage. Solenoid coils draw a nominal pick-up current of 99 mA for up to 24 ms before transitioning to a reduced current of 18 mA, and the unit conforms to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 537984
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 537984.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Diagnostics: Undervoltage of pneumatic valves
Max. no. of valve positions: 2
Max. no. of solenoid coils: 4
Intrinsic current consumption at load voltage: 23 mA
Intrinsic current consumption at operating voltage: 8 mA
Nominal pick-up current per solenoid coil: 99 mA up to 24 ms
Nominal current with current reduction: 18 mA after 24 ms
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 20 g
Housing material: POM
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 537984. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
