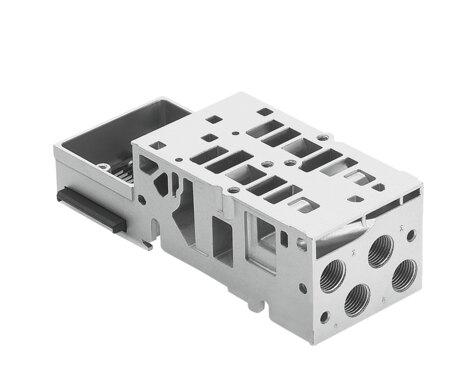

Reference imageConfirm configuration by manufacturer part number.
Festo
538000
Sub-base VMPA2-FB-AP-2-1
This Festo industrial component, part number 538000, features a die-cast aluminum sub-base with a width of 43 mm, a length of 107.3 mm, a width dimension of 21 mm, and a product weight of 185 g. It accommodates a maximum of 2 valve positions and includes G1/8 pneumatic connections 2 and 4, operating at pressures from -0.9 bar to 10 bar (-0.09 MPa to 1 MPa) with a pilot pressure of 3 bar to 8 bar (0.3 MPa to 0.8 MPa). The RoHS-compliant assembly has a corrosion resistance class of 0 with no corrosion stress, VDMA24364-B1/B2-L LABS conformity, and an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538000
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538000.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 43 mm
- Length
- 107.3 mm
- Width dimension
- 21 mm
- Max. no. of valve positions
- 2
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 185 g
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
