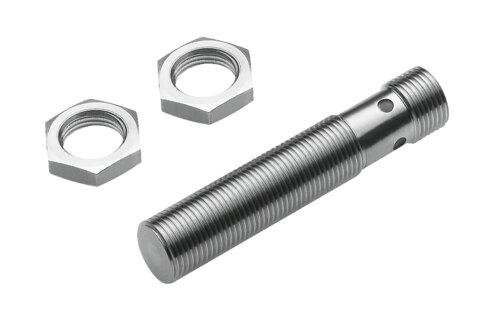

Reference imageConfirm configuration by manufacturer part number.
Festo
538253
Proximity sensor SIEH-M12B-NS-S-L-CR
The Festo 538253 industrial component conforms to standard EN 60947-5-2 and features an NPN switching output with an N.O. contact function, operating within a DC voltage range of 10 V to 30 V. It provides a rated operating distance of 6 mm, an assured operating distance of 4.86 mm, a maximum switching frequency of 600 Hz, and a maximum output current of 200 mA across an ambient temperature range of -25 °C to 70 °C. This unit includes pulsed short-circuit protection, an installed inductive protective circuit, and holds RCM compliance and c UL us-Listed certifications alongside CE and UKCA markings. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538253
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538253.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for EMC (UK-E) | according to UK RoHS regulations (UK-R)
- Rated operating distance
- 6 mm
- Assured operating distance
- 4.86 mm
- Reduction factors
- Aluminum = 1.0 | Stainless steel, 1 mm thick = 0.45 | Stainless steel, 2 mm thick = 0.9 | Copper = 0.85 | Brass = 1.3 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...70 °C
- Switching output
- NPN
- Switching element function
- N.O. contact
- Reproducibility, switching value FS
- 0.3 mm
- Hysteresis
- 0.73 mm
- Max. switching frequency
- 600 Hz
- Max. output current
- 200 mA
- Voltage drop
- 2 V
- Inductive protective circuit
- Installed | Output current <100 mA | and switching frequency < 10 Hz
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 20%
- Idle current
- 17 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
