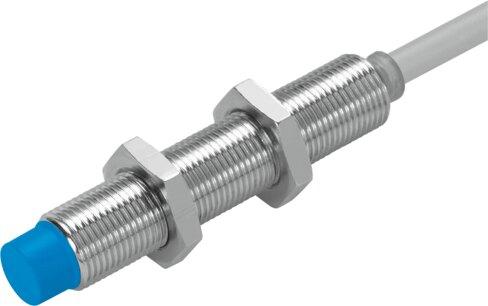

Name: Festo 538268 Proximity sensor SIED-M12NB-ZS-K-L
Brand: Festo

Proximity sensor SIED-M12NB-ZS-K-L

The Festo part number 538268 is an inductive round industrial component featuring an EN 60947-5-2 compliant design with a 4 mm rated operating distance and 3.24 mm assured operating distance. This 2-wire non-contacting switching output device operates with an N.O. contact, a maximum DC switching frequency of 900 Hz, a maximum AC switching frequency of 25 Hz, and a maximum output current of 200 mA across an ambient temperature range of -25 °C to 85 °C. It holds c UL us - Listed (OL) and RCM compliance certifications while carrying CE and UKCA markings per EMC and low voltage directives. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 538268
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 538268.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Conforms to standard: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK instructions for electrical equipment
Measuring principle: Inductive
Rated operating distance: 4 mm
Assured operating distance: 3.24 mm
Reduction factors: Aluminum = 0.6 | Stainless steel St 18/8 = 0.9 | Copper = 0.5 | Brass = 0.6 | Steel St 37 = 1.0
Ambient temperature: -25 °C...85 °C
Repetition accuracy: 0.2 mm
Switching output: Non-contacting, 2-wire
Switching element function: N.O. contact
Hysteresis: 0.03 mm...0.88 mm
Max. switching frequency DC: 900 Hz
Max. switching frequency AC: 25 Hz
Max. output current: 200 mA
Voltage drop: 8 V
Minimum load current: 5 mA
Short-circuit protection: No
Operating voltage range AC: 20 V...265 V
DC operating voltage range: 20 V...320 V
Mains frequency: 50 Hz
Idle current: 1.5 mA
Reverse polarity protection: for all electrical connections
Electrical connection: 2-core | Cable

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 538268. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
