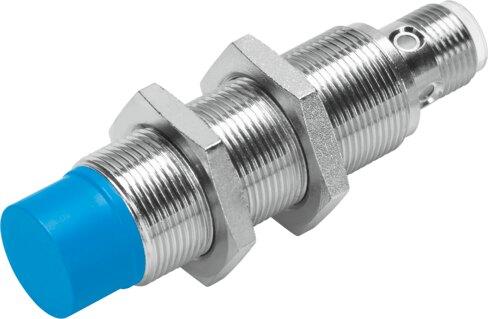

Reference imageConfirm configuration by manufacturer part number.
Festo
538275
Proximity sensor SIED-M18NB-ZS-S-L
The Festo part number 538275 is a round inductive industrial component conforming to EN 60947-5-2 with an 8 mm rated operating distance and 6.5 mm assured operating distance. This 2-wire non-contacting unit features an N.O. contact switching element function, a maximum DC switching frequency of 340 Hz, and a maximum AC switching frequency of 25 Hz across an ambient temperature range of -25 °C to 85 °C. It carries RCM compliance, c UL us listing, and CE and UKCA markings per EMC and low voltage directives without short-circuit protection. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538275
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538275.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK instructions for electrical equipment
- Measuring principle
- Inductive
- Rated operating distance
- 8 mm
- Assured operating distance
- 6.5 mm
- Reduction factors
- Aluminum = 0.4 | Stainless steel St 18/8 = 0.7 | Copper = 0.3 | Brass = 0.4 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...85 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Non-contacting, 2-wire
- Switching element function
- N.O. contact
- Hysteresis
- 0.03 mm...1.9 mm
- Max. switching frequency DC
- 340 Hz
- Max. switching frequency AC
- 25 Hz
- Max. output current
- 300 mA
- Voltage drop
- 8 V
- Minimum load current
- 5 mA
- Short-circuit protection
- No
- Operating voltage range AC
- 20 V...265 V
- DC operating voltage range
- 20 V...320 V
- Mains frequency
- 50 Hz
- Idle current
- 1.5 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 2-pin | M12x1
