Name: Festo 538279 Proximity sensor SIED-M18B-ZS-S-L
Brand: Festo

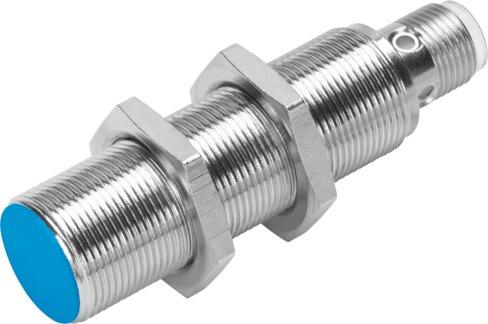

Proximity sensor SIED-M18B-ZS-S-L

The Festo part number 538279 is a round inductive industrial component conforming to EN 60947-5-2 with a rated operating distance of 5 mm and an assured operating distance of 4.05 mm. This non-contacting 2-wire unit features an N.O. contact switching element function, a maximum DC switching frequency of 490 Hz, a maximum AC switching frequency of 25 Hz, and a maximum output current of 300 mA across an ambient temperature range of -25 °C to 85 °C. It carries RCM compliance, c UL us-Listed (OL) certification, and CE and UKCA markings as per EU and UK directives for EMC and electrical equipment. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 538279
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 538279.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Conforms to standard: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK instructions for electrical equipment
Measuring principle: Inductive
Rated operating distance: 5 mm
Assured operating distance: 4.05 mm
Reduction factors: Aluminum = 0.4 | Stainless steel St 18/8 = 0.7 | Copper = 0.3 | Brass = 0.4 | Steel St 37 = 1.0
Ambient temperature: -25 °C...85 °C
Repetition accuracy: 0.15 mm
Switching output: Non-contacting, 2-wire
Switching element function: N.O. contact
Hysteresis: 0.04 mm...1.15 mm
Max. switching frequency DC: 490 Hz
Max. switching frequency AC: 25 Hz
Max. output current: 300 mA
Voltage drop: 8 V
Minimum load current: 5 mA
Short-circuit protection: No
Operating voltage range AC: 20 V...265 V
DC operating voltage range: 20 V...320 V
Mains frequency: 50 Hz
Idle current: 1.5 mA
Reverse polarity protection: for all electrical connections
Electrical connection: 2-pin | M12x1

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 538279. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
