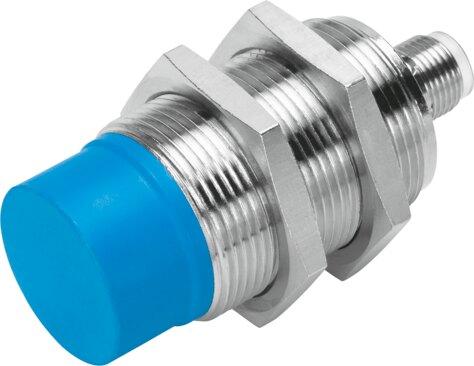

Reference imageConfirm configuration by manufacturer part number.
Festo
538283
Proximity sensor SIED-M30NB-ZS-S-L
The Festo 538283 is an inductive, round industrial component with a rated operating distance of 15 mm and an assured operating distance of 12.15 mm. Conforming to EN 60947-5-2, it features a non-contacting 2-wire switching output with a N.O. contact, a maximum DC switching frequency of 220 Hz, and a maximum AC switching frequency of 25 Hz. This unit operates within an ambient temperature range of -25 °C to 85 °C and carries RCM compliance, c UL us listing, along with applicable CE and UKCA markings. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538283
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538283.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK instructions for electrical equipment
- Measuring principle
- Inductive
- Rated operating distance
- 15 mm
- Assured operating distance
- 12.15 mm
- Reduction factors
- Aluminum = 0.5 | Stainless steel St 18/8 = 0.8 | Copper = 0.4 | Brass = 0.5 | Steel St 37 = 1.0
- Ambient temperature
- -25 °C...85 °C
- Repetition accuracy
- 0.4 mm
- Switching output
- Non-contacting, 2-wire
- Switching element function
- N.O. contact
- Hysteresis
- 0.04 mm...3.3 mm
- Max. switching frequency DC
- 220 Hz
- Max. switching frequency AC
- 25 Hz
- Max. output current
- 300 mA
- Voltage drop
- 8 V
- Minimum load current
- 5 mA
- Short-circuit protection
- No
- Operating voltage range AC
- 20 V...265 V
- DC operating voltage range
- 20 V...320 V
- Mains frequency
- 50 Hz
- Idle current
- 1.5 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 2-pin | M12x1
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 538283. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
