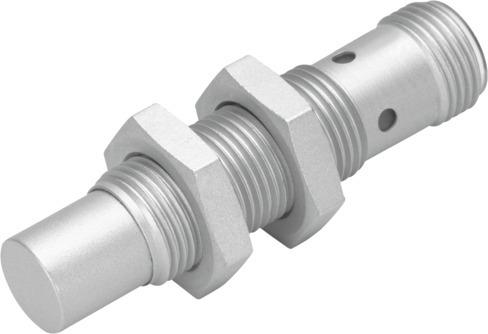

Name: Festo 538295 Proximity sensor SIEF-M12NB-PS-S-L-WA
Brand: Festo

Proximity sensor SIEF-M12NB-PS-S-L-WA

The Festo 538295 is a round inductive industrial component featuring an 8 mm rated operating distance, 6.48 mm assured operating distance, and unified reduction factors of 1.0 for aluminum, stainless steel St 18/8, copper, brass, and steel St 37. Conforming to EN 60947-5-2 with RCM compliance, c UL us listing, and CE marking per the EU EMC directive, this sensor operates within a 10 V to 30 V DC range, delivers a maximum DC switching frequency of 2000 Hz via a PNP N/O contact, and functions across an ambient temperature range of -30 °C to 85 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 538295
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 538295.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Conforms to standard: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive
Measuring principle: Inductive
Rated operating distance: 8 mm
Assured operating distance: 6.48 mm
Reduction factors: Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
Ambient temperature: -30 °C...85 °C
Repetition accuracy: 0.16 mm
Switching output: PNP
Switching element function: N/O contact
Hysteresis: 0.24 mm...1.2 mm
Max. switching frequency DC: 2000 Hz
Max. output current: 200 mA
Voltage drop: 1.8 V
Short-circuit protection: Pulsed
DC operating voltage range: 10 V...30 V
Residual ripple: 10 %
Idle current: 15 mA
Reverse polarity protection: for all electrical connections
Electrical connection: 3-pin | Fixcon | M12x1 | Plug
Size: M12
Type of mounting: With lock nut
Tightening torque: 7 Nm
Mounting type: Partially ush
