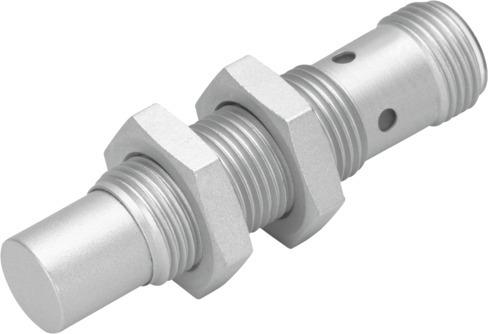

Reference imageConfirm configuration by manufacturer part number.
Festo
538296
Proximity sensor SIEF-M12NB-NS-S-L-WA
The Festo 538296 is a round inductive industrial component featuring an 8 mm rated operating distance and an NPN switching output with a normally open contact function. Conforming to EN 60947-5-2 with RCM and c UL us - Listed certifications, this unit operates on a 10 V to 30 V DC voltage range across an ambient temperature span of -30 °C to 85 °C. It provides a maximum switching frequency of 2000 Hz, a 200 mA max output current, and consistent reduction factors of 1.0 for aluminum, stainless steel, copper, brass, and steel St 37. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538296
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538296.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Measuring principle
- Inductive
- Rated operating distance
- 8 mm
- Assured operating distance
- 6.48 mm
- Reduction factors
- Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
- Ambient temperature
- -30 °C...85 °C
- Repetition accuracy
- 0.16 mm
- Switching output
- NPN
- Switching element function
- N/O contact
- Hysteresis
- 0.24 mm...1.2 mm
- Max. switching frequency DC
- 2000 Hz
- Max. output current
- 200 mA
- Voltage drop
- 1.8 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10 %
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | Fixcon | M12x1 | Plug
- Size
- M12
- Type of mounting
- With lock nut
- Tightening torque
- 7 Nm
- Mounting type
- Partially ush
