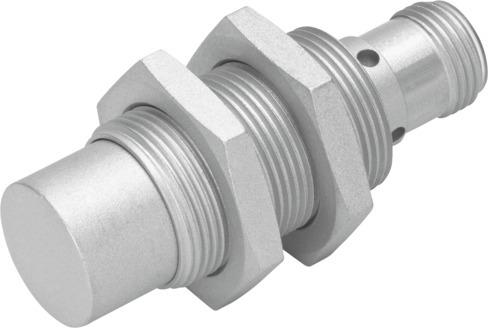

Reference imageConfirm configuration by manufacturer part number.
Festo
538301
Proximity sensor SIEF-M18B-PS-S-L-WA
The Festo 538301 is an inductive round industrial component conforming to EN 60947-5-2 with RCM compliance, c UL us-Listed (OL) certification, and CE marking per the EU EMC directive. This PNP N/O contact sensor operates within a 10 V to 30 V DC voltage range, featuring a 5 mm rated operating distance, 4.05 mm assured operating distance, and unified reduction factors of 1.0 for aluminum, stainless steel St 18/8, copper, brass, and steel St 37. It achieves a maximum DC switching frequency of 2,500 Hz, 200 mA max output current, 0.1 mm repetition accuracy, and pulsed short-circuit protection across an ambient temperature range of -30 °C to 85 °C. Submit the exact part number, quantity, and application requirements for a formal quote on this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538301
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538301.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Measuring principle
- Inductive
- Rated operating distance
- 5 mm
- Assured operating distance
- 4.05 mm
- Reduction factors
- Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
- Ambient temperature
- -30 °C...85 °C
- Repetition accuracy
- 0.1 mm
- Switching output
- PNP
- Switching element function
- N/O contact
- Hysteresis
- 0.15 mm...0.75 mm
- Max. switching frequency DC
- 2500 Hz
- Max. output current
- 200 mA
- Voltage drop
- 1.8 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10 %
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | Fixcon | M12x1 | Plug
- Size
- M18
- Type of mounting
- With lock nut
- Tightening torque
- 15 Nm
- Mounting type
- Flush
