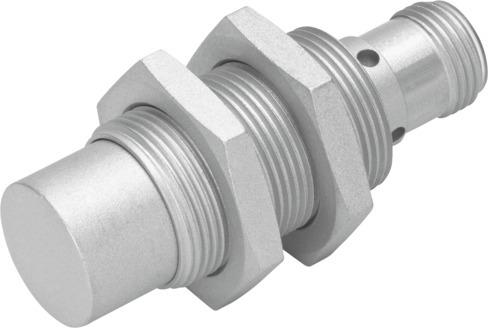

Name: Festo 538302 Proximity sensor SIEF-M18B-NS-S-L-WA
Brand: Festo

Proximity sensor SIEF-M18B-NS-S-L-WA

The Festo 538302 is a round inductive industrial component featuring a 5 mm rated operating distance and a 2500 Hz maximum DC switching frequency. Conforming to EN 60947-5-2 with RCM and c UL us-Listed certifications, this NPN normally open sensor operates within a 10 V to 30 V DC voltage range across ambient temperatures from -30 °C to 85 °C. It provides pulsed short-circuit protection, a 200 mA max output current, and identical reduction factors of 1.0 for aluminum, stainless steel St 18/8, copper, brass, and steel St 37. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 538302
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 538302.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Conforms to standard: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive
Measuring principle: Inductive
Rated operating distance: 5 mm
Assured operating distance: 4.05 mm
Reduction factors: Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
Ambient temperature: -30 °C...85 °C
Repetition accuracy: 0.1 mm
Switching output: NPN
Switching element function: N/O contact
Hysteresis: 0.15 mm...0.75 mm
Max. switching frequency DC: 2500 Hz
Max. output current: 200 mA
Voltage drop: 1.8 V
Short-circuit protection: Pulsed
DC operating voltage range: 10 V...30 V
Residual ripple: 10 %
Idle current: 15 mA
Reverse polarity protection: for all electrical connections
Electrical connection: 3-pin | Fixcon | M12x1 | Plug
Size: M18
Type of mounting: With lock nut
Tightening torque: 15 Nm
Mounting type: Flush

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 538302. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
