Festo
538303

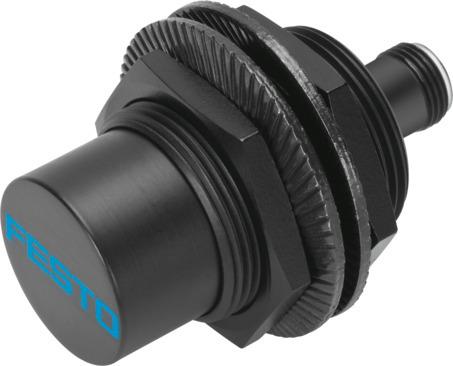

Proximity sensor SIEF-M30NB-PS-S-L-WA
The Festo 538303 is an inductive round industrial component featuring a rated operating distance of 20 mm and a 16.2 mm assured operating distance with a uniform reduction factor of 1.0 across aluminum, stainless steel St 18/8, copper, brass, and steel St 37. It conforms to EN 60947-5-2, carries CE marking as per the EU EMC directive along with RCM compliance and c UL us - Listed (OL) certifications, and operates within a DC voltage range of 10 V to 30 V utilizing a PNP switching output with a normally open contact function. The unit delivers a maximum switching frequency of 1500 Hz, a 200 mA max output current, pulsed short-circuit protection, and a functioning ambient temperature range of -30 °C to 85 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538303
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538303.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Measuring principle
- Inductive
- Rated operating distance
- 20 mm
- Assured operating distance
- 16.2 mm
- Reduction factors
- Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
- Ambient temperature
- -30 °C...85 °C
- Repetition accuracy
- 0.4 mm
- Switching output
- PNP
- Switching element function
- N/O contact
- Hysteresis
- 0.6 mm...3 mm
- Max. switching frequency DC
- 1500 Hz
- Max. output current
- 200 mA
- Voltage drop
- 1.8 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10 %
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | Fixcon | M12x1 | Plug
- Size
- M30
- Type of mounting
- With lock nut
- Tightening torque
- 75 Nm
- Mounting type
- Partially ush
