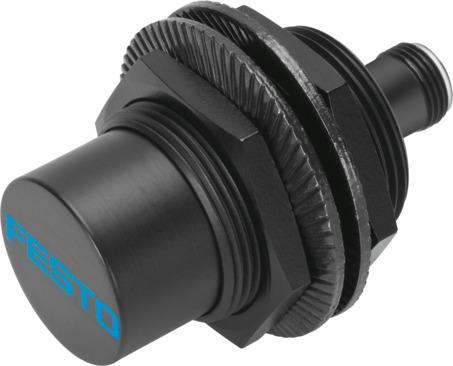

Name: Festo 538304 Proximity sensor SIEF-M30NB-NS-S-L-WA
Brand: Festo

Proximity sensor SIEF-M30NB-NS-S-L-WA

The Festo 538304 is a round inductive industrial component featuring a 20 mm rated operating distance and an NPN switching output with an N/O contact function. It conforms to EN 60947-5-2 standards, carries RCM and c UL us - Listed certifications, and operates on a 10 V to 30 V DC voltage range across ambient temperatures from -30 °C to 85 °C. Featuring unified reduction factors of 1.0 for aluminum, stainless steel St 18/8, copper, brass, and steel St 37, this unit delivers a max switching frequency of 1500 Hz with pulsed short-circuit protection. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 538304
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 538304.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Conforms to standard: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive
Measuring principle: Inductive
Rated operating distance: 20 mm
Assured operating distance: 16.2 mm
Reduction factors: Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
Ambient temperature: -30 °C...85 °C
Repetition accuracy: 0.4 mm
Switching output: NPN
Switching element function: N/O contact
Hysteresis: 0.6 mm...3 mm
Max. switching frequency DC: 1500 Hz
Max. output current: 200 mA
Voltage drop: 1.8 V
Short-circuit protection: Pulsed
DC operating voltage range: 10 V...30 V
Residual ripple: 10 %
Idle current: 15 mA
Reverse polarity protection: for all electrical connections
Electrical connection: 3-pin | Fixcon | M12x1 | Plug
Size: M30
Type of mounting: With lock nut
Tightening torque: 75 Nm
Mounting type: Partially ush
