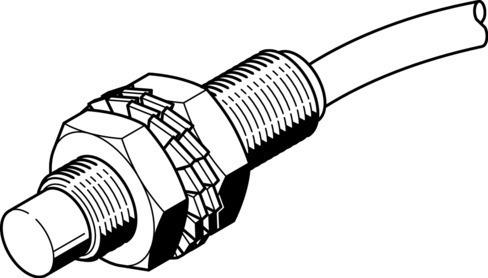

Name: Festo 538308 Proximity sensor SIEF-M8NB-PS-K-L
Brand: Festo

Proximity sensor SIEF-M8NB-PS-K-L

The Festo 538308 is a round inductive industrial component featuring a 4 mm rated operating distance, 3.24 mm assured operating distance, and unified reduction factors of 1.0 for aluminum, stainless steel St 18/8, copper, brass, and steel St 37. This unit operates on a 10 V to 30 V DC range with a PNP switching output, N.O. contact, 2000 Hz max DC switching frequency, and pulsed short-circuit protection. It conforms to EN 60947-5-2 with an ambient temperature range of -30 °C to 85 °C and carries RCM, c UL us - Listed (OL), CE, and UKCA compliance markings. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 538308
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 538308.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Conforms to standard: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Measuring principle: Inductive
Rated operating distance: 4 mm
Assured operating distance: 3.24 mm
Reduction factors: Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
Ambient temperature: -30 °C...85 °C
Repetition accuracy: 0.08 mm
Switching output: PNP
Switching element function: N.O. contact
Hysteresis: 0.12 mm...0.6 mm
Max. switching frequency DC: 2000 Hz
Max. output current: 150 mA
Voltage drop: 1.8 V
Short-circuit protection: Pulsed
DC operating voltage range: 10 V...30 V
Residual ripple: 10%
Idle current: 15 mA
Reverse polarity protection: for all electrical connections
Electrical connection: 3-wire | Cable
Electrical connection 1, connection type: Cable
