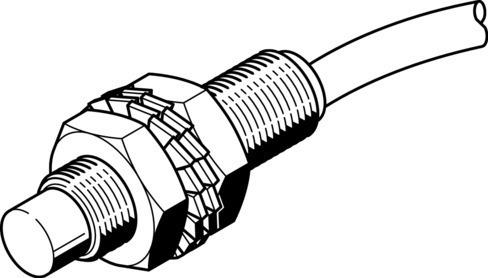

Reference imageConfirm configuration by manufacturer part number.
Festo
538310
Proximity sensor SIEF-M8NB-NS-K-L
The Festo part number 538310 is a round inductive industrial component conforming to EN 60947-5-2 with a 4 mm rated operating distance and uniform reduction factors of 1.0 for aluminum, stainless steel St 18/8, copper, brass, and steel St 37. It features an NPN switching output with a normally open contact function, a maximum DC switching frequency of 2000 Hz, and a DC operating voltage range from 10 V to 30 V while operating in ambient temperatures between -30 °C and 85 °C. The unit includes pulsed short-circuit protection and carries RCM compliance, c UL us - Listed (OL) certification, alongside CE and UKCA markings for EMC, low voltage, and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538310
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538310.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Measuring principle
- Inductive
- Rated operating distance
- 4 mm
- Assured operating distance
- 3.24 mm
- Reduction factors
- Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
- Ambient temperature
- -30 °C...85 °C
- Repetition accuracy
- 0.08 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- Hysteresis
- 0.12 mm...0.6 mm
- Max. switching frequency DC
- 2000 Hz
- Max. output current
- 150 mA
- Voltage drop
- 1.8 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-wire | Cable
- Electrical connection 1, connection type
- Cable
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 538310. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
