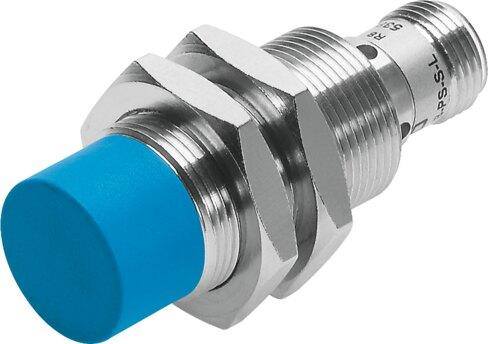

Name: Festo 538315 Proximity sensor SIEF-M18NB-PS-S-L
Brand: Festo

Proximity sensor SIEF-M18NB-PS-S-L

The Festo 538315 is a round inductive industrial component featuring a 12 mm rated operating distance and 9.72 mm assured operating distance with uniform reduction factors of 1.0 for aluminum, stainless steel St 18/8, copper, brass, and steel St 37. Conforming to EN 60947-5-2, this PNP switching output device operates on a 10 V to 30 V DC voltage range with a 200 mA max output current, 2000 Hz max DC switching frequency, and pulsed short-circuit protection across an ambient temperature range of -30 °C to 85 °C. It includes RCM and c UL us listings along with CE and UKCA markings per applicable EMC, low voltage, and RoHS directives. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 538315
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 538315.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Conforms to standard: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Measuring principle: Inductive
Rated operating distance: 12 mm
Assured operating distance: 9.72 mm
Reduction factors: Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
Ambient temperature: -30 °C...85 °C
Repetition accuracy: 0.24 mm
Switching output: PNP
Switching element function: N.O. contact
Hysteresis: 0.36 mm...1.8 mm
Max. switching frequency DC: 2000 Hz
Max. output current: 200 mA
Voltage drop: 1.8 V
Short-circuit protection: Pulsed
DC operating voltage range: 10 V...30 V
Residual ripple: 10%
Idle current: 15 mA
Reverse polarity protection: for all electrical connections
Electrical connection: 3-pin | Fixcon | M12x1 | Plug

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 538315. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
