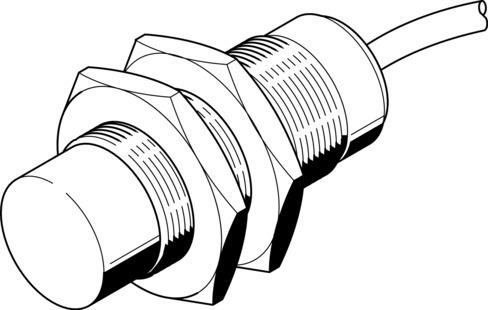

Reference imageConfirm configuration by manufacturer part number.
Festo
538320
Proximity sensor SIEF-M30NB-PS-K-L
The Festo 538320 is a round inductive industrial component featuring a 20 mm rated operating distance and an assured operating distance of 16.2 mm, with uniform reduction factors of 1.0 across aluminum, stainless steel St 18/8, copper, brass, and steel St 37. Operating on a 10 V to 30 V DC range, this unit delivers a PNP switching output with a normally open contact function, a max switching frequency of 1500 Hz, and pulsed short-circuit protection across an ambient temperature range of -30 °C to 85 °C. It conforms to EN 60947-5-2 while carrying RCM, c UL us-Listed (OL), CE, and UKCA compliance markings. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538320
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538320.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Measuring principle
- Inductive
- Rated operating distance
- 20 mm
- Assured operating distance
- 16.2 mm
- Reduction factors
- Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
- Ambient temperature
- -30 °C...85 °C
- Repetition accuracy
- 0.4 mm
- Switching output
- PNP
- Switching element function
- N.O. contact
- Hysteresis
- 0.6 mm...3 mm
- Max. switching frequency DC
- 1500 Hz
- Max. output current
- 200 mA
- Voltage drop
- 1.8 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-wire | Cable
- Electrical connection 1, connection type
- Cable
