Festo
538341

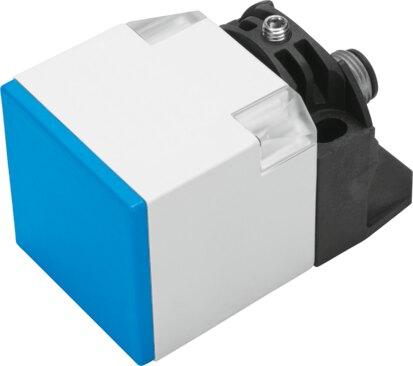

Proximity sensor SIEF-Q40S-PA-S-2L
This Festo square inductive industrial component conforms to EN 60947-5-2 and features a rated operating distance of 35 mm with an assured operating distance of 28.35 mm. It operates within a DC voltage range of 10 V to 65 V, providing a PNP switching output with an antivalent switching element function, a maximum switching frequency of 250 Hz, and a maximum output current of 200 mA across an ambient temperature range of -30 °C to 85 °C. The unit includes RCM compliance, CE marking per EU directives for EMC, low voltage, and RoHS, and UKCA marking corresponding to UK instructions for electrical equipment, EMC, and RoHS. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538341
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538341.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Square
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Measuring principle
- Inductive
- Rated operating distance
- 35 mm
- Assured operating distance
- 28.35 mm
- Reduction factors
- Aluminum = 1.0 | Stainless steel St 18/8 = 1.0 | Copper = 1.0 | Brass = 1.0 | Steel St 37 = 1.0
- Ambient temperature
- -30 °C...85 °C
- Repetition accuracy
- 0.7 mm
- Switching output
- PNP
- Switching element function
- Antivalent
- Hysteresis
- 1.05 mm...5.25 mm
- Max. switching frequency DC
- 250 Hz
- Max. output current
- 200 mA
- Voltage drop
- 1.8 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...65 V
- Residual ripple
- 10%
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 4-pin | Fixcon | M12x1 | Plug
