538510

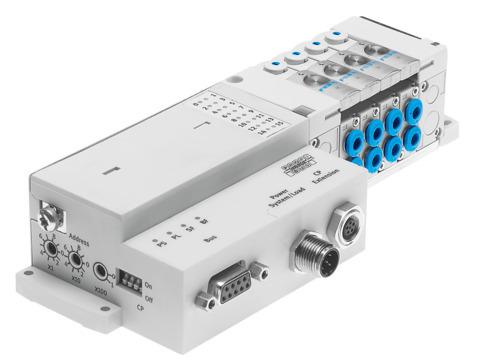

Name: Festo 538510 Valve manifold CPV-SC-FB-VI
Brand: Festo

Valve manifold CPV-SC-FB-VI

The Festo 538510 is a type 80 valve terminal featuring a fixed grid valve manifold design, integrated electrical I/O system, and CPI installation system with fieldbus electrical actuation. This component operates with compressed air conforming to ISO 8573-1:2010 [7:4:4] within a medium and ambient temperature range of -5 °C to 50 °C, supporting an operating pressure of -0.09 MPa to 0.7 MPa and a pilot pressure of 0.3 MPa to 0.7 MPa. Rated to IP40 with a CRC 1 corrosion resistance class, it complies with RoHS, VDMA24364-B2-L LABS conformity, EU EMC, UKCA, and KC-EMV directives while holding c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 538510
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 538510.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: CPI installation system | Fieldbus
Electrical I/O system: Yes
Valve terminal type: 80
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -5 °C...50 °C
Ambient temperature: -5 °C...50 °C
Degree of protection: IP40
Corrosion resistance class (CRC): 1 - Low corrosion stress
Operating pressure: -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
Pilot pressure MPa: 0.3 MPa...0.7 MPa
Pilot pressure: 3 bar...7 bar
Operating pressure for valve manifold with internal pilot air supply: 0.3 MPa...0.7 MPa | 3 bar...7 bar
LABS (PWIS) conformity: VDMA24364-B2-L
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC
KC characters: KC-EMV
Certication: c UL us - recognized (OL)
Note on materials: RoHS compliant
Valve manifold design: Fixed grid
Max. no. of valve positions: 16
Max. no. of pressure zones: 8
Actuation type: Electrical
Valve function: 2/2-way, closed, monostable | 3/2-way, closed, monostable | 3/2-way, monostable, open | 5/2-way, bistable | 5/2-way, monostable
Structural design: Piston gate valve
Valve size: 10 mm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 538510. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
