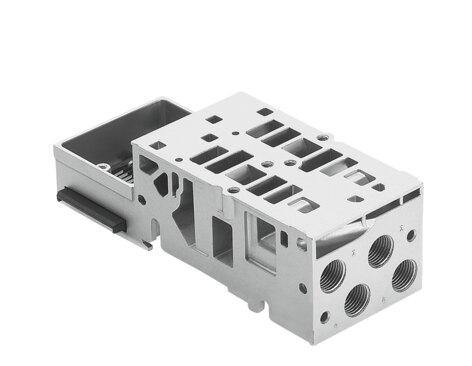

Reference imageConfirm configuration by manufacturer part number.
Festo
538677
Sub-base VMPA2-FB-AP-2-1-T0
The Festo 538677 industrial component features a width of 43 mm, a length of 107.3 mm, a width dimension of 21 mm, and a product weight of 185 g with a die-cast aluminum sub-base. It accommodates a maximum of 2 valve positions, supports operating pressures from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and pilot pressures from 0.3 MPa to 0.8 MPa (3 bar to 8 bar) via G1/8 pneumatic connections 2 and 4. Built with RoHS-compliant materials, this unit operates within ambient temperatures of -5 °C to 50 °C, exhibits a corrosion resistance class of 0 with no corrosion stress, and conforms to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538677
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538677.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 43 mm
- Length
- 107.3 mm
- Width dimension
- 21 mm
- Max. no. of valve positions
- 2
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 185 g
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 538677. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
