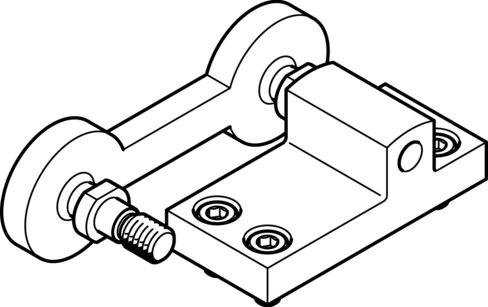

Reference imageConfirm configuration by manufacturer part number.
Festo
538714
Moment compensator FKC-18
The Festo 538714 is a size 18 industrial component featuring a wrought aluminum alloy plate, a high-alloy steel ball stud, and a PA-reinforced articulated joint with a product weight of 96.8 g. This assembly accommodates a radial deviation of plus or minus 2.5 mm, supports a short-term maximum permissible load in the direction of force of plus or minus 3000 N, and handles a long-term maximum permissible load of plus or minus 1400 N within an ambient temperature range of -10 °C to 60 °C. Rated at a corrosion resistance class (CRC) of 1 for low corrosion stress, it complies with VDMA24364-B1/B2-L LABS conformity and includes RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538714
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538714.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 18
- Radial deviation +/-
- 2.5 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Short-term maximum permissible load in direction of force +/-
- 3000 N
- Long-term maximum permissible load in direction of force +/-
- 1400 N
- Product weight
- 96.8 g
- Note on materials
- RoHS compliant
- Articulated joint material
- PA-reinforced
- Ball stud material
- High-alloy steel
- Plate material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 538714. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
