Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

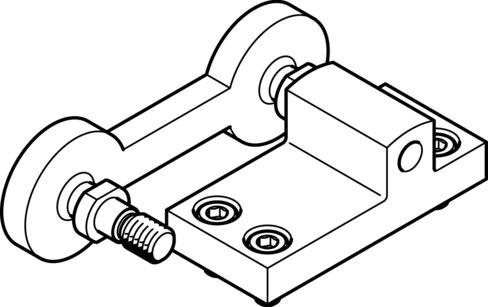

Reference imageConfirm configuration by manufacturer part number.
Festo
538715
Moment compensator FKC-25
The Festo industrial component, part number 538715, features a size 25 specification with a radial deviation of plus or minus 2.5 mm and a product weight of 119 g. Constructed with a wrought aluminum alloy plate, a PA-reinforced articulated joint, and a high-alloy steel ball stud, this RoHS compliant unit achieves corrosion resistance class 1 for low corrosion stress and VDMA24364-B1/B2-L LABS conformity. It operates within an ambient temperature range of -10 °C to 60 °C while withstanding a short-term maximum permissible load in the direction of force of plus or minus 3000 N and a long-term maximum permissible load of plus or minus 1400 N. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538715
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538715.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Radial deviation +/-
- 2.5 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Short-term maximum permissible load in direction of force +/-
- 3000 N
- Long-term maximum permissible load in direction of force +/-
- 1400 N
- Product weight
- 119 g
- Note on materials
- RoHS compliant
- Articulated joint material
- PA-reinforced
- Ball stud material
- High-alloy steel
- Plate material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 538715. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
