Festo
538828

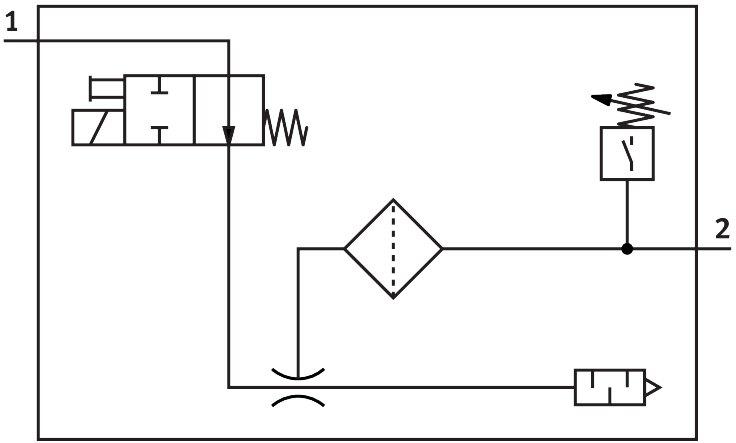

Vacuum generator OVEM-05-H-B-QO-ON-N-2P
The Festo part number 538828 is an industrial component featuring a modular structural design with a 0.45 mm Laval nozzle nominal width, a 20 mm width dimension, an open muffler construction type, and an any mounting position. It incorporates an electric on-off valve, a filter, an open muffler, a vacuum switch, high vacuum and standard ejector characteristics, a 40 µm filtration grade, and a non-detenting manual override that is also operable via control keys. This unit utilizes piezoresistive measuring principles to measure relative pressure across a -0.999 bar to 0 bar display range on a backlit, 4-digit alphanumeric LCD supporting bar units, alongside NC or N.O. contact switching element functions, window and threshold value comparator switching functions, an open valve function, short-circuit protection, reverse polarity protection for all electrical connections, and switching inputs conforming to IEC 61131-2. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538828
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538828.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 20 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting | Also via control keys
- Integrated function
- Electric on-off valve | Filter | Muffler open | Vacuum switch
- Structural design
- Modular
- Short-circuit protection
- Yes
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- NC contact | N.O. contact
- Switching function
- Window comparator | Threshold value comparator
- Valve function
- Open
- Reverse polarity protection
- for all electrical connections
- Switching input to standard
- IEC 61131-2
- Display type
- 4-digit, alphanumeric | Backlit LCD
- Display range
- -0.999 bar...0 bar
- Displayable unit(s)
- bar
- Setting range hysteresis
- -0.9 bar...0 bar
- Setting options
- Via display and keys
- Switching position indication
- LCD
- Switching status indication
- Optical
- Setting range threshold value
- -0.999 bar...0 bar
- Operating pressure
- 2 bar...8 bar
