Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
538829

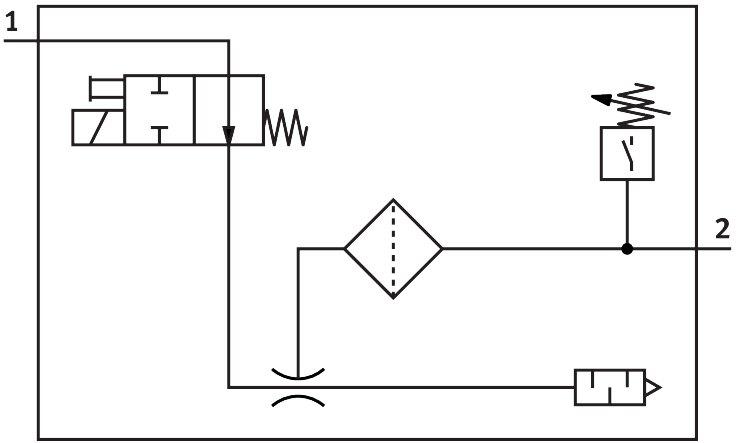

Vacuum generator OVEM-07-H-B-QO-ON-N-2P
The Festo part number 538829 is a modular industrial component featuring a 0.7 mm nominal width Laval nozzle, a 20 mm width dimension, an open muffler construction type, and an any mounting position. This unit provides high vacuum and standard ejector characteristics, a 40 µm grade of filtration, and a non-detenting manual override that is also operable via control keys. Integrated functions include an electric on-off valve, filter, open muffler, and vacuum switch with piezoresistive relative pressure measurement, short-circuit protection, reverse polarity protection, and an IEC 61131-2 compliant switching input. The device incorporates NC/N.O. switching element functions, window and threshold value comparator switching functions, an open valve function, and a backlit 4-digit alphanumeric LCD display with a -0.999 bar to 0 bar display range in bar units. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538829
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538829.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 20 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting | Also via control keys
- Integrated function
- Electric on-off valve | Filter | Muffler open | Vacuum switch
- Structural design
- Modular
- Short-circuit protection
- Yes
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- NC contact | N.O. contact
- Switching function
- Window comparator | Threshold value comparator
- Valve function
- Open
- Reverse polarity protection
- for all electrical connections
- Switching input to standard
- IEC 61131-2
- Display type
- 4-digit, alphanumeric | Backlit LCD
- Display range
- -0.999 bar...0 bar
- Displayable unit(s)
- bar
- Setting range hysteresis
- -0.9 bar...0 bar
- Setting options
- Via display and keys
- Switching position indication
- LCD
- Switching status indication
- Optical
- Setting range threshold value
- -0.999 bar...0 bar
- Operating pressure
- 2 bar...8 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 538829. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
