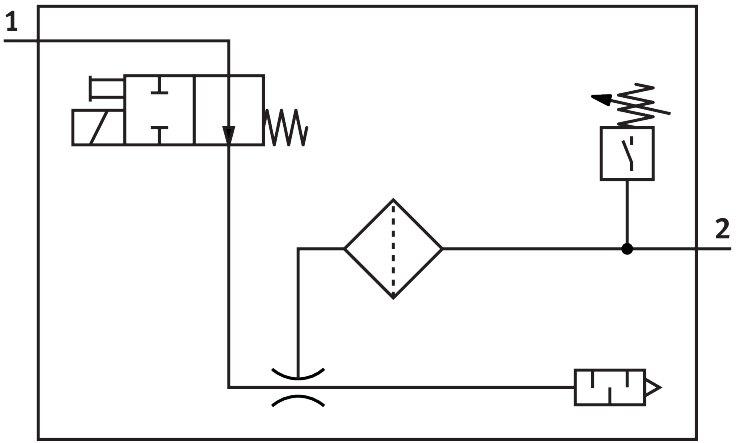

Reference imageConfirm configuration by manufacturer part number.
Festo
538830
Vacuum generator OVEM-10-H-B-QO-ON-N-2P
The Festo part number 538830 is a modular industrial component featuring a 0.95 mm nominal width Laval nozzle, a 20 mm width dimension, an open muffler construction type, and an any mounting position. It provides high vacuum and standard ejector characteristics with 40 µm filtration, non-detenting manual override also accessible via control keys, and integrated functions including an electric on-off valve, filter, open muffler, and vacuum switch. Incorporating short-circuit and reverse polarity protection for all electrical connections, this unit utilizes a piezoresistive measuring principle for relative pressure, configurable NC/NO switching elements, window and threshold value comparator switching functions, an open valve function, and switching inputs conforming to IEC 61131-2. Operational data is indicated on a 4-digit backlit alphanumeric LCD offering a -0.999 bar to 0 bar display range in bar units. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538830
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538830.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 20 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting | Also via control keys
- Integrated function
- Electric on-off valve | Filter | Muffler open | Vacuum switch
- Structural design
- Modular
- Short-circuit protection
- Yes
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- NC contact | N.O. contact
- Switching function
- Window comparator | Threshold value comparator
- Valve function
- Open
- Reverse polarity protection
- for all electrical connections
- Switching input to standard
- IEC 61131-2
- Display type
- 4-digit, alphanumeric | Backlit LCD
- Display range
- -0.999 bar...0 bar
- Displayable unit(s)
- bar
- Setting range hysteresis
- -0.9 bar...0 bar
- Setting options
- Via display and keys
- Switching position indication
- LCD
- Switching status indication
- Optical
- Setting range threshold value
- -0.999 bar...0 bar
- Operating pressure
- 2 bar...8 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 538830. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
