Festo
538961

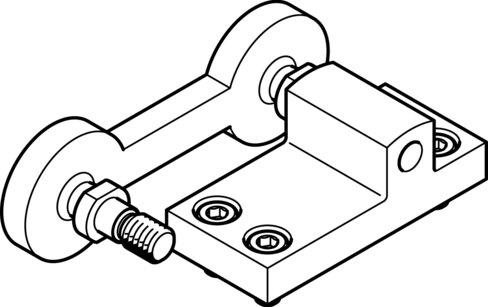

Moment compensator FKC-32
The Festo 538961 industrial component features a size 32 design integrating a wrought aluminum alloy plate, high-alloy steel ball stud, and PA-reinforced articulated joint with a product weight of 122.3 g. This RoHS-compliant part operates within an ambient temperature range of -10 °C to 60 °C, exhibiting a radial deviation of plus or minus 2.5 mm and a corrosion resistance class of CRC 1 for low corrosion stress alongside VDMA24364-B1/B2-L LABS conformity. It supports a short-term maximum permissible load in the direction of force of plus or minus 3000 N and a long-term maximum permissible load of plus or minus 1400 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 538961
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 538961.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Radial deviation +/-
- 2.5 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Short-term maximum permissible load in direction of force +/-
- 3000 N
- Long-term maximum permissible load in direction of force +/-
- 1400 N
- Product weight
- 122.3 g
- Note on materials
- RoHS compliant
- Articulated joint material
- PA-reinforced
- Ball stud material
- High-alloy steel
- Plate material
- Wrought aluminum alloy
