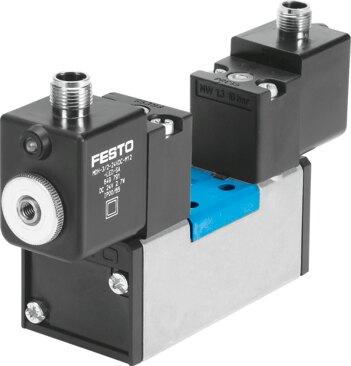

Reference imageConfirm configuration by manufacturer part number.
Festo
539079
Air solenoid valve JMDDH-5/2-D-1-M12-C
This Festo 539079 industrial component is a 5/2-way dominant, bistable piston gate valve featuring electrical actuation and a 24V DC operating voltage. Built with a 42 mm width, an ISO code 169 configuration, and an IP65 degree of protection, the unit delivers a normal nominal flow rate of 1200 l/min across an operating pressure range of 2 bar to 10 bar. It utilizes a piloted internal control, soft sealing principle, adjustable exhaust air function, and non-detenting manual override while conforming to the ISO 5599-1 standard with size 1 sub-base or G1/4 pneumatic working ports. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539079
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539079.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, dominant, bistable
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 2 bar...10 bar
- Structural design
- Piston gate valve
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- ISO code
- 169
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Changeover time
- 18 ms
- Switching time changeover (dominant)
- 18 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3800 µs
- Max. negative test pulse on 1 signal
- 4900 µs
- Coil characteristics
- 24 V DC: 2.7 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539079. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
