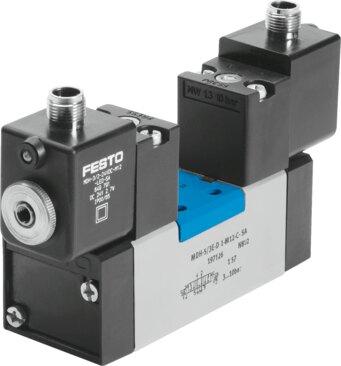

Reference imageConfirm configuration by manufacturer part number.
Festo
539080
Air solenoid valve MDH-5/3G-D-3-M12-C
The Festo part number 539080 is an electrical piston gate valve featuring a 5/3-way closed function and a 65 mm width with a nominal width of 14.5 mm. It operates at 24V DC within a pressure range of 3 bar to 10 bar, delivering a normal nominal flow rate of 4100 l/min through an ISO 5599-1 size 3 sub-base or G1/2 pneumatic working port. Designed with IP65 protection, an internal pilot air supply, and a mechanical spring reset, this component conforms to ISO 5599-1 standards and includes an adjustable exhaust air function and non-detenting manual override. Submit the exact part number, quantity, and application requirements to receive a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539080
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539080.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4100 l/min
- Pneumatic working port
- Sub-base, size 3 as per ISO 5599-1 | G1/2
- Operating voltage
- 24V DC
- Operating pressure
- 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 14.5 mm
- Width dimension
- 71 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- ISO code
- 356
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Switching time off
- 79 ms
- On switching time
- 35 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3800 µs
- Max. negative test pulse on 1 signal
- 4900 µs
- Coil characteristics
- 24 V DC: 2.7 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539080. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
