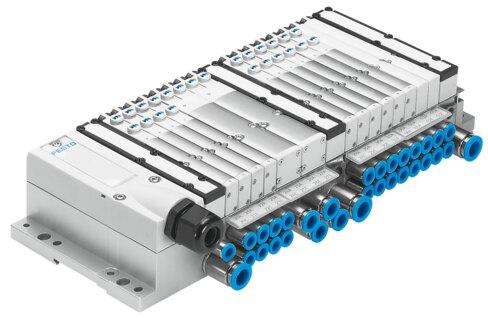

Reference imageConfirm configuration by manufacturer part number.
Festo
539105
Valve manifold MPA-MPM-VI
The Festo 539105 is a valve terminal type 32 featuring multi-pin electrical actuation and an operating pressure range of -0.09 MPa to 1 MPa. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] within a medium and ambient temperature range of -5 °C to 50 °C, supporting oil lubrication. Built with an IP67 degree of protection and ATEX category gas II 3G certification, this unit complies with EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539105
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539105.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- Multi-pin
- Valve terminal type
- 32
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...40 °C
- Relative air humidity
- Max. 90% at 40°C
- Degree of protection
- IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Explosion prevention and protection
- Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (UKEX)
- ATEX category gas
- II 3G
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Type of ignition protection for gas
- Ex ec IIC T4 Gc X
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Certicate issuing authority
- MH19482
- Note on materials
- RoHS compliant
- Valve manifold design
- Modular, pneumatic valve sizes can be mixed
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539105. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
