Festo
5391541
Motor cable NEBM-M16G8-E-2.5-Q7-LE8-1
The Festo industrial component, part number 5391541, is built according to norm EN 61984 and features a product weight of 450 g without a cable designation label holder. Electrical connection 1 functions at the field device end with a straight, round socket connection technology of M16x0.75, comprising 8 pins with 6 occupied pins, while electrical connection 2 on the control side connects to an open-ended cable with 8 pins and 6 occupied pins. This component supports a DC and AC operating voltage range of 0 V to 600 V, which is adjusted to 0 V to 300 V for a conductor cross-section of 0.25 mm², and delivers a current rating of 12 A at 40° C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5391541
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5391541.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Cable designation
- Without label holder
- Product weight
- 450 g

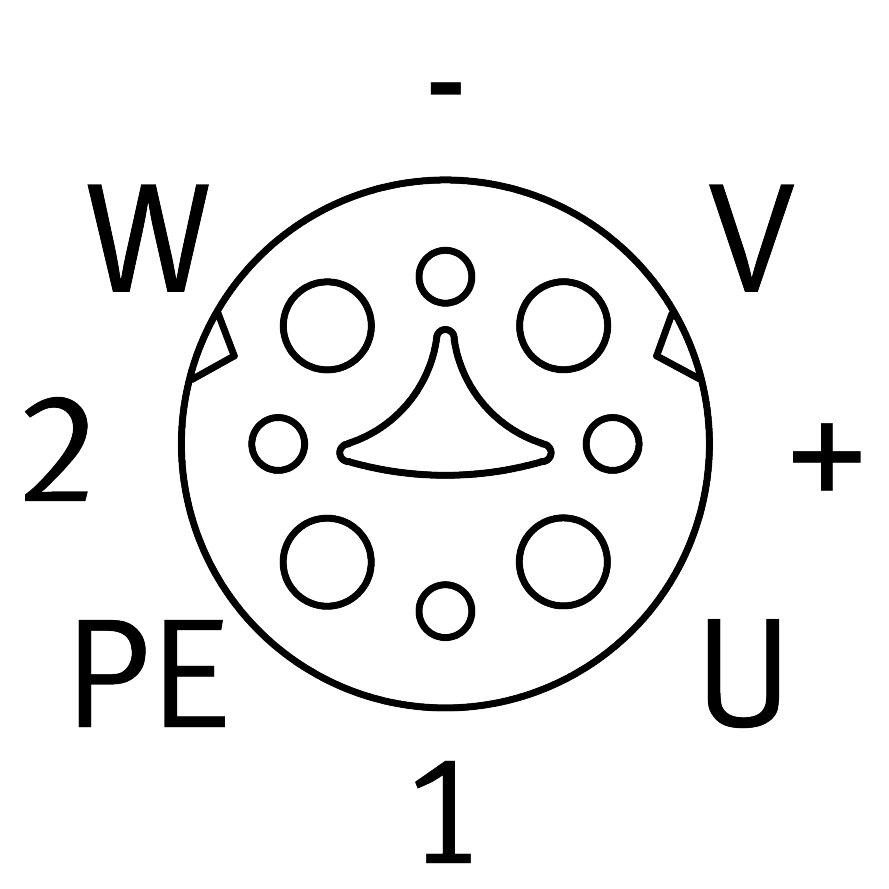

- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M16x0.75
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 6
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 6
- DC operating voltage range
- 0 V...600 V
- Note on operating voltage range DC
- 0 - 300 V for conductor cross-section of 0.25 mm²
- Operating voltage range AC
- 0 V...600 V
- Note on operating voltage range AC
- 0 - 300 V for conductor cross-section of 0.25 mm²
- Current rating at 40° C
- 12 A
- Note on acceptable current load at 40°C
- 4 A for conductor cross-section of 0.25 mm²
- Surge resistance
- 6 kV
- Note on surge resistance
- 4 kV for a conductor cross-section of 0.25 mm²
- Shield
- yes
- Cable length
- 2.5 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, xed cable installation
- 55 mm
- Bending radius, exible cable installation
- 110 mm
- Cable diameter
- 11 mm
- Cable design
- 4 x 0.75 mm² + 2 x (2 x 0.25 mm²)
