Festo
5391550
Motor cable NEBM-M16G8-E-15-Q9-LE8-1

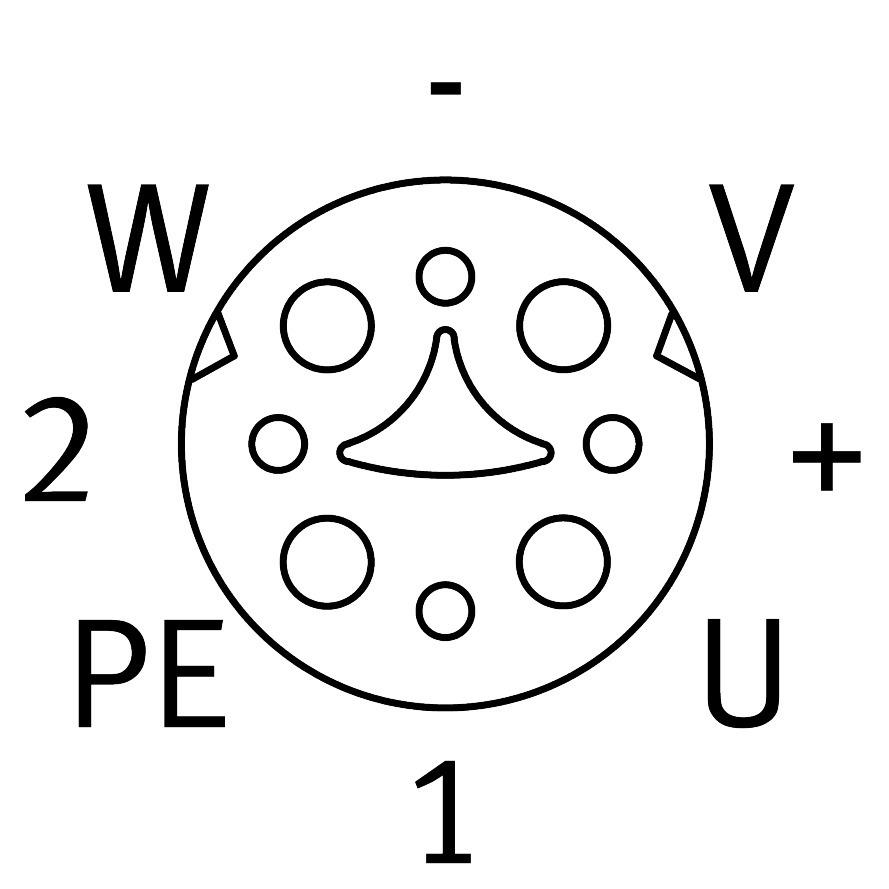

This Festo industrial component, part number 5391550, is manufactured based on the EN 61984 norm and features an electrical connection 1 with a straight, round socket of M16x0.75 connection technology at the field device end. Weighing 3500 g and lacking a label holder for the cable designation, the unit connects the field device end having 8 pins/wires (6 occupied) to an open-end control side with 8 pins/wires (6 occupied) via cable. It operates within a DC and AC voltage range of 0 V to 600 V, which is limited to 0 to 300 V for a 0.5 mm² conductor cross-section, while delivering a current rating of 16 A at 40° C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5391550
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5391550.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Cable designation
- Without label holder
- Product weight
- 3500 g
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M16x0.75
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 6
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 6
- DC operating voltage range
- 0 V...600 V
- Note on operating voltage range DC
- 0 - 300 V for conductor cross-section of 0.5 mm²
- Operating voltage range AC
- 0 V...600 V
- Note on operating voltage range AC
- 0 - 300 V for conductor cross-section of 0.5 mm²
- Current rating at 40° C
- 16 A
- Note on acceptable current load at 40°C
- 8 A for conductor cross-section of 0.5 mm²
- Surge resistance
- 6 kV
- Note on surge resistance
- 4 kV for a conductor cross-section of 0.5 mm²
- Shield
- yes
- Cable length
- 15 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, xed cable installation
- 64 mm
- Bending radius, exible cable installation
- 128 mm
- Cable diameter
- 12.8 mm
- Cable design
- 4 x 1.5 mm² + 2 x (2 x 0.5 mm²)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5391550. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
