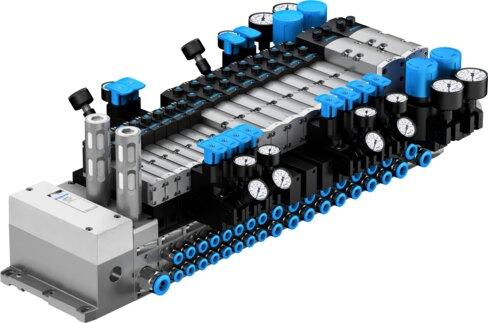

Reference imageConfirm configuration by manufacturer part number.
Festo
539215
Valve manifold VTSA-MP
The Festo part number 539215 is a type 44 industrial component featuring AP interface, IO-Link, and multi-pin electrical actuation. This unit operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of -0.09 MPa to 1 MPa, supporting oil lubrication operation and internal pilot air supply from 0.3 MPa to 1 MPa. It carries an IP65 and NEMA 4 degree of protection, ATEX Zone 2 gas category II 3G certification, and compliance with EU and UK directives including EMC, low voltage, and RoHS. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539215
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539215.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- AP interface | IO-Link® | Multi-pin
- Valve terminal type
- 44
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Degree of protection
- IP65 | NEMA 4
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Operating pressure for valve manifold with internal pilot air supply
- 0.3 MPa...1 MPa | 3 bar...10 bar
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- KC characters
- KC-EMV
- Certication
- BIA | C-Tick | c UL us - recognized (OL)
- Explosion prevention and protection
- Zone 2 (ATEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex nA IIC T3 X Gc
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Certicate issuing authority
- UL E322346
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539215. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
