539216

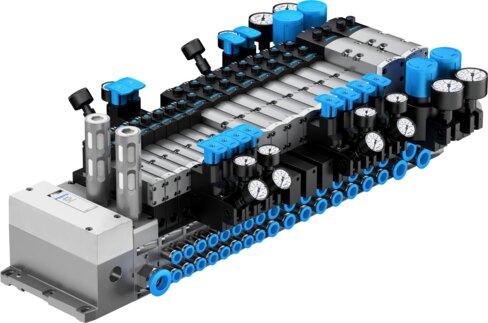

Name: Festo 539216 Valve manifold VTSA-MP-NPT
Brand: Festo

Valve manifold VTSA-MP-NPT

The Festo 539216 is a type 44 industrial valve terminal featuring electrical actuation via AP interface, IO-Link, and multi-pin connections for compressed air operation as per ISO 8573-1:2010 [7:4:4]. This component functions within an operating pressure range of -0.9 bar to 10 bar, a pilot pressure of 3 bar to 10 bar, an ambient temperature range of -5 °C to 50 °C, and provides an IP65 and NEMA 4 degree of protection with zero corrosion stress resistance class (CRC 0). Compliance includes CE marking as per the EU EMC directive, UKCA directives for EMC, RoHS, and electrical equipment, KC-EMV characters, and c UL us recognition under file E322346. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 539216
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 539216.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: AP interface | IO-Link® | Multi-pin
Valve terminal type: 44
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...60 °C
Relative air humidity: 0 - 90%
Degree of protection: IP65 | NEMA 4
Corrosion resistance class (CRC): 0 - No corrosion stress
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...1 MPa
Pilot pressure: 3 bar...10 bar
Operating pressure for valve manifold with internal pilot air supply: 0.3 MPa...1 MPa | 3 bar...10 bar
LABS (PWIS) conformity: VDMA24364-B1/B2-L
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
KC characters: KC-EMV
Certication: BIA | C-Tick | c UL us - recognized (OL)
Certicate issuing authority: UL E322346
Note on materials: RoHS compliant
Valve manifold design: Modular, pneumatic valve sizes can be mixed
Max. no. of valve positions: 32
Max. no. of pressure zones: 32
Actuation type: Electrical
Valve function: 2x2/2 closed, monostable

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 539216. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
