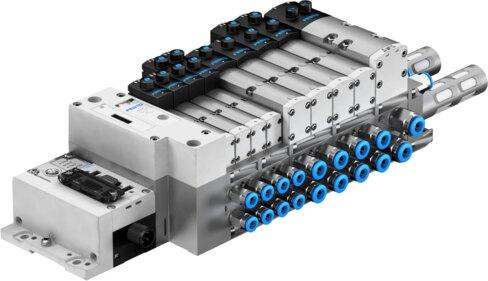

Reference imageConfirm configuration by manufacturer part number.
Festo
539217
Valve manifold VTSA-FB
The Festo part number 539217 is an industrial component featuring Ethernet, Fieldbus, and integrated controller electrical actuation alongside an integrated electrical I/O system for valve terminal type 44. This unit operates with compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure range of -0.9 bar to 10 bar, a pilot pressure of 3 bar to 10 bar, and an ambient temperature range of -5 °C to 50 °C. It provides IP65 and NEMA 4 protection, holds ATEX Zone 2 explosion protection certification, and complies with EU EMC and explosion protection directives as well as UKCA and KC-EMV standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539217
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539217.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- Ethernet | Fieldbus | Integrated controller
- Electrical I/O system
- Yes
- Valve terminal type
- 44
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Degree of protection
- IP65 | NEMA 4
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Operating pressure for valve manifold with internal pilot air supply
- 0.3 MPa...1 MPa | 3 bar...10 bar
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- BIA | C-Tick | c UL us - recognized (OL)
- Explosion prevention and protection
- Zone 2 (ATEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex nA IIC T3 X Gc
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Note on materials
- RoHS compliant
- Valve manifold design
- Modular, pneumatic valve sizes can be mixed
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539217. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
